AOK40B120M1

AOK40B120M1

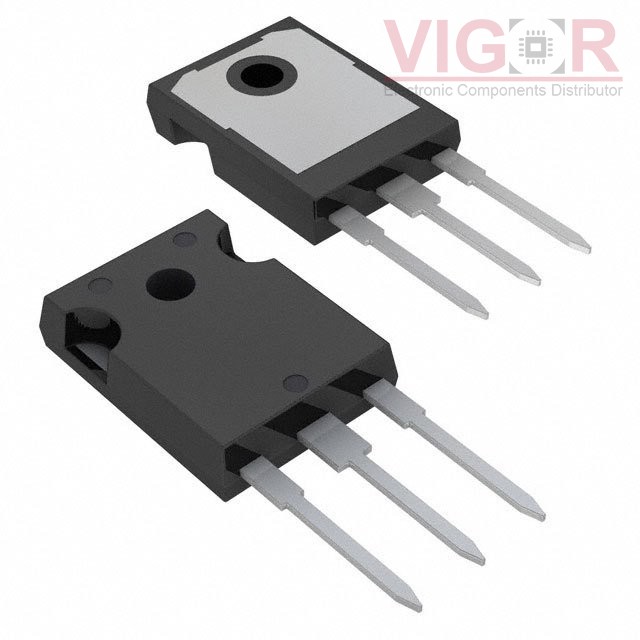

Image is for reference,
please contact us to get the real picture

Part No :

AOK40B120M1

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
IGBT 1200V 40A TO-247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
AOK40B120M1 PDF
Availability
0 pieces
Unit Price
$5.47446

Current price of AOK40B120M1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AOK40B120M1 Specifications
Type Description
Series:Alpha IGBT™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):120 A
Vce(on) (Max) @ Vge, Ic:2.45V @ 15V, 40A
Power - Max:600 W
Switching Energy:3.87mJ (on), 1.25mJ (off)
Input Type:Standard
Gate Charge:140 nC
Td (on/off) @ 25°C:90ns/226ns
Test Condition:600V, 40A, 7.5Ohm, 15V
Reverse Recovery Time (trr):340 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
