IKZ50N65EH5XKSA1

IKZ50N65EH5XKSA1

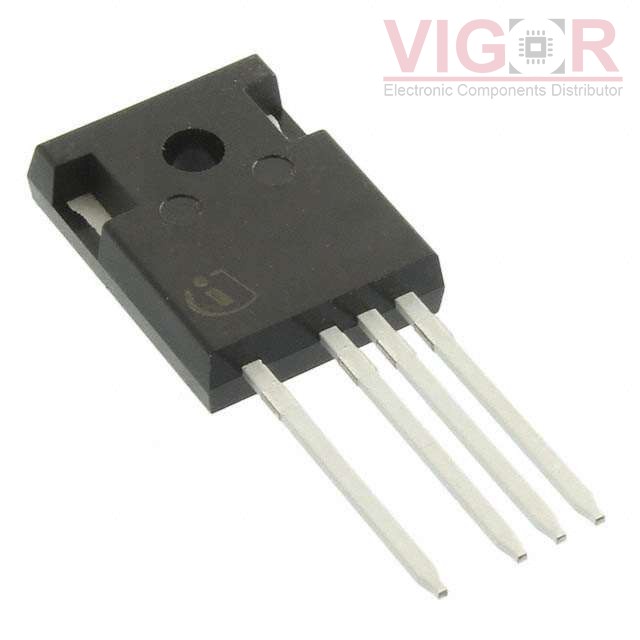

Image is for reference,
please contact us to get the real picture

Part No :

IKZ50N65EH5XKSA1

Manufacturer
IR (Infineon Technologies)
Description
IGBT 650V 50A CO-PACK TO-247-4
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
IKZ50N65EH5XKSA1 PDF
Availability
0 pieces
Unit Price
$7.16000

Current price of IKZ50N65EH5XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IKZ50N65EH5XKSA1 Specifications
Type Description
Series:TrenchStop™ 5
Package:Tube
Part Status:Active
IGBT Type:Trench
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):85 A
Current - Collector Pulsed (Icm):200 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 50A
Power - Max:273 W
Switching Energy:410µJ (on), 190µJ (off)
Input Type:Standard
Gate Charge:109 nC
Td (on/off) @ 25°C:20ns/250ns
Test Condition:400V, 25A, 12Ohm, 15V
Reverse Recovery Time (trr):53 ns
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-4
Supplier Device Package:PG-TO247-4
