STGD5NB120SZ-1

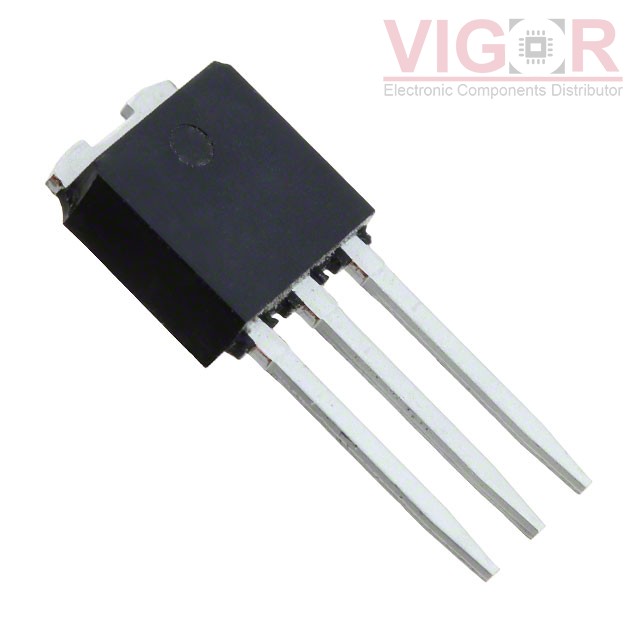

Image is for reference,
please contact us to get the real picture

Part No :: STGD5NB120SZ-1

Manufacturer: STMicroelectronics

Description: IGBT 1200V 10A 75W IPAK

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 02 - Jul 06 2025

DataSheet: STGD5NB120SZ-1 PDF

Availability: 0 pieces

Unit Price: ~~$1.65000~~

Current price of STGD5NB120SZ-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGD5NB120SZ-1 Specifications

Type	Description
Series:	PowerMESH™
Package:	Tube
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	10 A
Current - Collector Pulsed (Icm):	10 A
Vce(on) (Max) @ Vge, Ic:	2V @ 15V, 5A
Power - Max:	75 W
Switching Energy:	2.59mJ (on), 9mJ (off)
Input Type:	Standard
Gate Charge:	-
Td (on/off) @ 25°C:	690ns/12.1µs
Test Condition:	960V, 5A, 1kOhm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA
Supplier Device Package:	I-PAK
