AOK40B60D

AOK40B60D

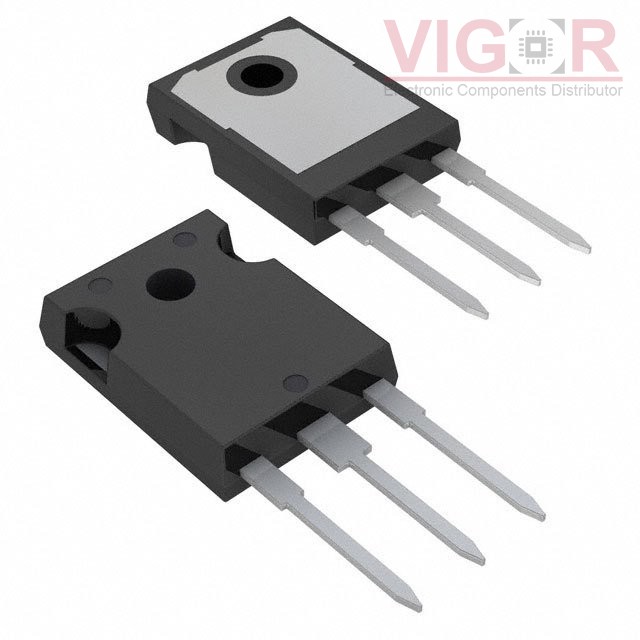

Image is for reference,
please contact us to get the real picture

Part No :

AOK40B60D

Manufacturer
Alpha and Omega Semiconductor, Inc.
Description
IGBT 600V 80A 312.5W TO247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
AOK40B60D PDF
Availability
0 pieces
Unit Price
$3.90238

Current price of AOK40B60D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AOK40B60D Specifications
Type Description
Series:Alpha IGBT™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 40A
Power - Max:312.5 W
Switching Energy:1.72mJ (on), 300µJ (off)
Input Type:Standard
Gate Charge:63.5 nC
Td (on/off) @ 25°C:28ns/77ns
Test Condition:400V, 40A, 7.5Ohm, 15V
Reverse Recovery Time (trr):138 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
