IXBA16N170AHV

IXBA16N170AHV

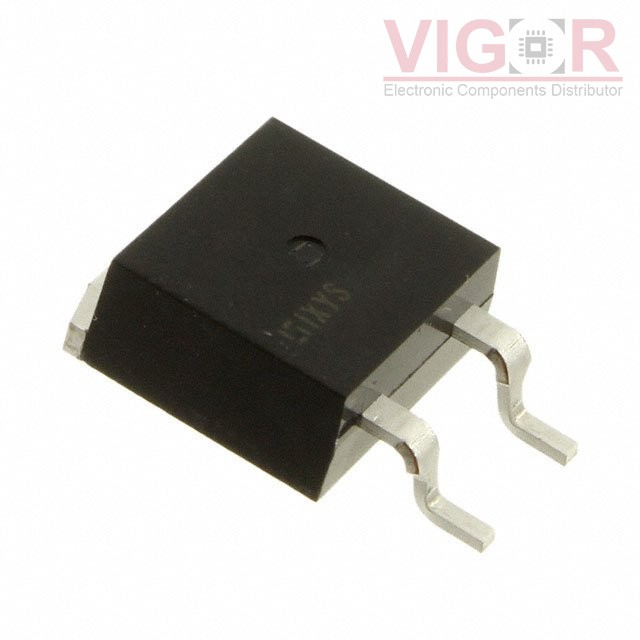

Image is for reference,
please contact us to get the real picture

Part No :

IXBA16N170AHV

Manufacturer
Wickmann / Littelfuse
Description
REVERSE CONDUCTING IGBT
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
IXBA16N170AHV PDF
Availability
650 pieces
Unit Price
$22.73000

Current price of IXBA16N170AHV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXBA16N170AHV Specifications
Type Description
Series:BIMOSFET™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):1700 V
Current - Collector (Ic) (Max):16 A
Current - Collector Pulsed (Icm):40 A
Vce(on) (Max) @ Vge, Ic:6V @ 15V, 10A
Power - Max:150 W
Switching Energy:2.5mJ (off)
Input Type:Standard
Gate Charge:65 nC
Td (on/off) @ 25°C:15ns/250ns
Test Condition:1360V, 10A, 10Ohm, 15V
Reverse Recovery Time (trr):25 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:TO-263HV
