STGF20H65DFB2

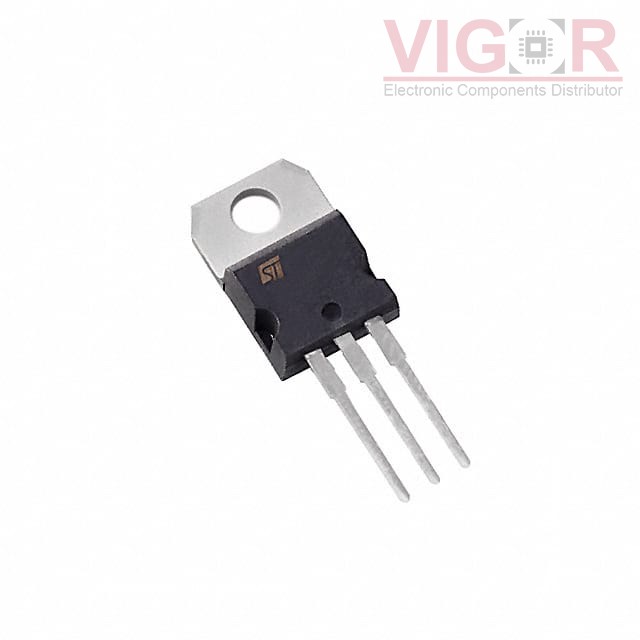

Image is for reference,
please contact us to get the real picture

Part No :

STGF20H65DFB2

Manufacturer
STMicroelectronics
Description
TRENCH GATE FIELD-STOP 650 V, 20
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
STGF20H65DFB2 PDF
Availability
200 pieces
Unit Price
$1.81000

Current price of STGF20H65DFB2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:HB2
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):40 A
Current - Collector Pulsed (Icm):60 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 20A
Power - Max:45 W
Switching Energy:265µJ (on), 214µJ (off)
Input Type:Standard
Gate Charge:56 nC
Td (on/off) @ 25°C:16ns/78.8ns
Test Condition:400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):215 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220FP
