IXYH40N65B3D1

IXYH40N65B3D1

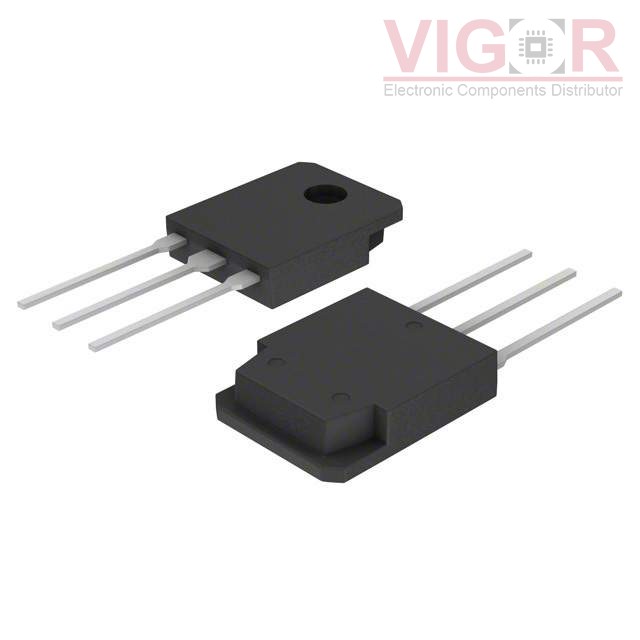

Image is for reference,
please contact us to get the real picture

Part No :

IXYH40N65B3D1

Manufacturer
Wickmann / Littelfuse
Description
IGBT
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
IXYH40N65B3D1 PDF
Availability
0 pieces
Unit Price
$4.95550

Current price of IXYH40N65B3D1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXYH40N65B3D1 Specifications
Type Description
Series:XPT™, GenX3™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):86 A
Current - Collector Pulsed (Icm):195 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 40A
Power - Max:300 W
Switching Energy:800µJ (on), 1.25mJ (off)
Input Type:Standard
Gate Charge:68 nC
Td (on/off) @ 25°C:20ns/140ns
Test Condition:400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr):37 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247
