STGFW30H65FB

STGFW30H65FB

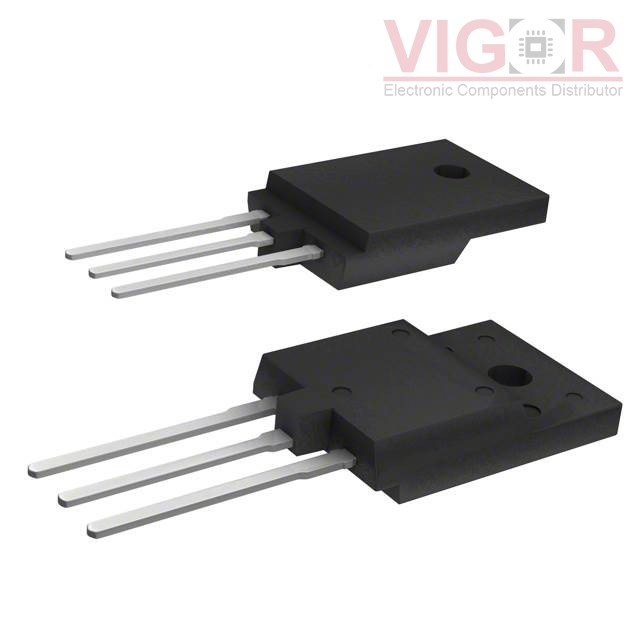

Image is for reference,
please contact us to get the real picture

Part No :

STGFW30H65FB

Manufacturer
STMicroelectronics
Description
IGBT 650V 60A 58W TO3PF
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
STGFW30H65FB PDF
Availability
0 pieces
Unit Price
$2.44000

Current price of STGFW30H65FB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGFW30H65FB Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):60 A
Current - Collector Pulsed (Icm):120 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 30A
Power - Max:58 W
Switching Energy:151µJ (on), 293µJ (off)
Input Type:Standard
Gate Charge:149 nC
Td (on/off) @ 25°C:37ns/146ns
Test Condition:400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3PFM, SC-93-3
Supplier Device Package:TO-3PF-3
