APT40GR120S

APT40GR120S

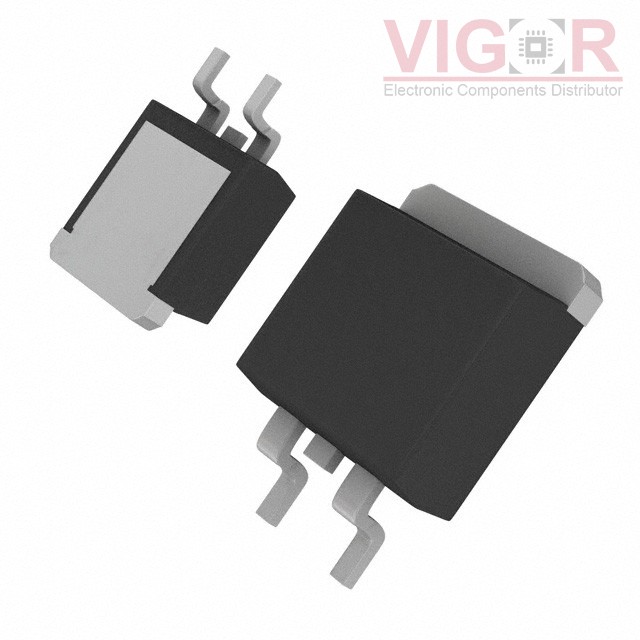

Image is for reference,
please contact us to get the real picture

Part No :

APT40GR120S

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT 1200V 88A 500W D3PAK
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 16 - Aug 20 2025
DataSheet
APT40GR120S PDF
Availability
0 pieces
Unit Price
$6.61000

Current price of APT40GR120S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APT40GR120S Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:NPT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):88 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:3.2V @ 15V, 40A
Power - Max:500 W
Switching Energy:1.38mJ (on), 906µJ (off)
Input Type:Standard
Gate Charge:210 nC
Td (on/off) @ 25°C:22ns/163ns
Test Condition:600V, 40A, 4.3Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:D3Pak
