DGTD120T40S1PT

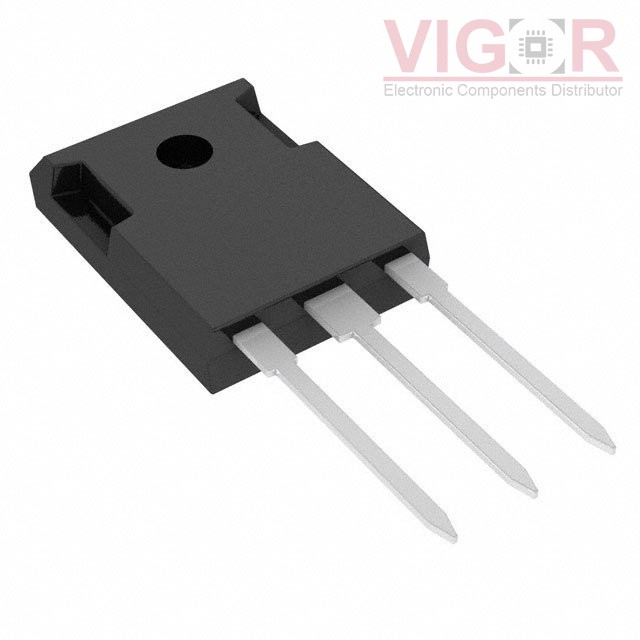

Image is for reference,
please contact us to get the real picture

Part No :: DGTD120T40S1PT

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IGBT 1200V-X TO247 TUBE 0.45K

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 16 - Aug 20 2025

DataSheet: DGTD120T40S1PT PDF

Availability: 21600 pieces

Unit Price: ~~$5.54513~~

Current price of DGTD120T40S1PT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DGTD120T40S1PT Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	80 A
Current - Collector Pulsed (Icm):	160 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 40A
Power - Max:	357 W
Switching Energy:	1.96mJ (on), 540µJ (off)
Input Type:	Standard
Gate Charge:	341 nC
Td (on/off) @ 25°C:	65ns/308ns
Test Condition:	600V, 40A, 10Ohm, 15V
Reverse Recovery Time (trr):	100 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
