IXYH40N120A4

IXYH40N120A4

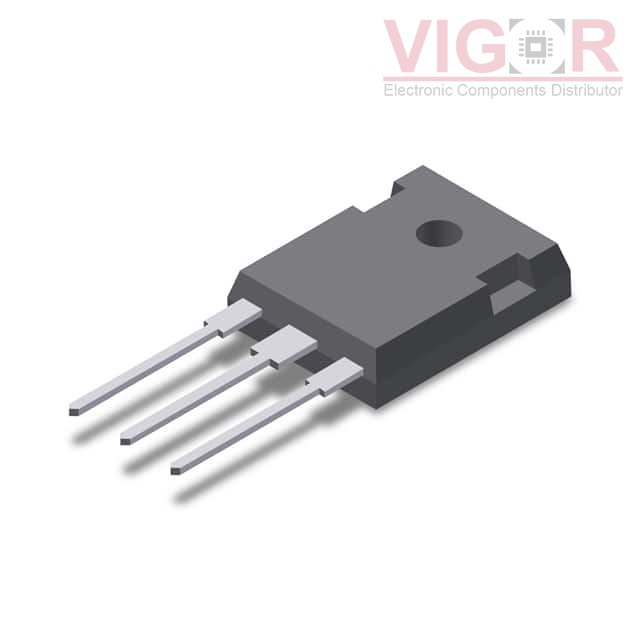

Image is for reference,
please contact us to get the real picture

Part No :

IXYH40N120A4

Manufacturer
Wickmann / Littelfuse
Description
IGBT 1200V 40A GENX4 XPT TO-247
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
IXYH40N120A4 PDF
Availability
480 pieces
Unit Price
$7.90897

Current price of IXYH40N120A4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXYH40N120A4 Specifications
Type Description
Series:XPT™, GenX4™
Package:Tube
Part Status:Active
IGBT Type:PT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):140 A
Current - Collector Pulsed (Icm):275 A
Vce(on) (Max) @ Vge, Ic:1.8V @ 15V, 32A
Power - Max:600 W
Switching Energy:2.3mJ (on), 3.75mJ (off)
Input Type:Standard
Gate Charge:90 nC
Td (on/off) @ 25°C:22ns/204ns
Test Condition:600V, 32A, 5Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247 (IXYH)
