APT75GN120LG

APT75GN120LG

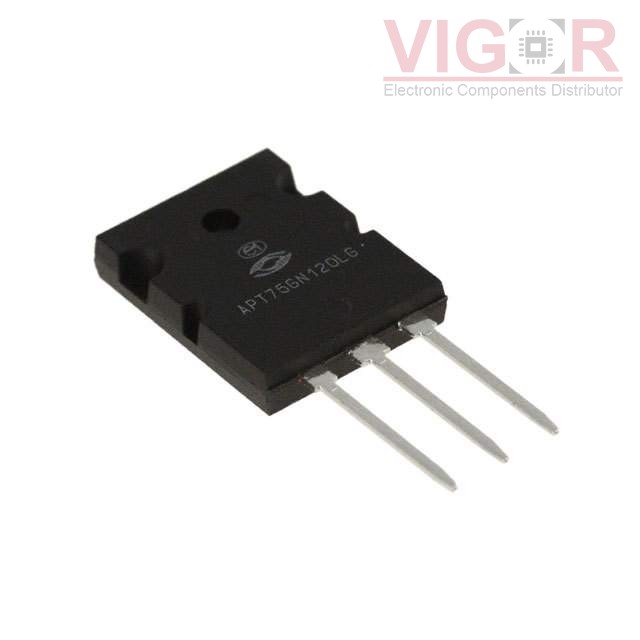

Image is for reference,
please contact us to get the real picture

Part No :

APT75GN120LG

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT 1200V 200A 833W TO264
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
APT75GN120LG PDF
Availability
288 pieces
Unit Price
$12.14000

Current price of APT75GN120LG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APT75GN120LG Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):200 A
Current - Collector Pulsed (Icm):225 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 75A
Power - Max:833 W
Switching Energy:8620µJ (on), 11400µJ (off)
Input Type:Standard
Gate Charge:425 nC
Td (on/off) @ 25°C:60ns/620ns
Test Condition:800V, 75A, 1Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-3, TO-264AA
Supplier Device Package:TO-264 [L]
