APT70GR120L

APT70GR120L

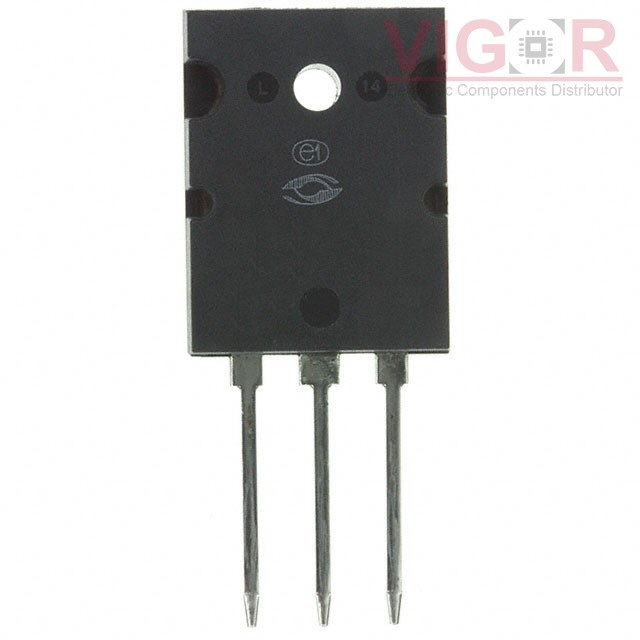

Image is for reference,
please contact us to get the real picture

Part No :

APT70GR120L

Manufacturer
Roving Networks / Microchip Technology
Description
IGBT 1200V 160A 961W TO264
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
APT70GR120L PDF
Availability
0 pieces
Unit Price
$10.31000

Current price of APT70GR120L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

APT70GR120L Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:NPT
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):160 A
Current - Collector Pulsed (Icm):280 A
Vce(on) (Max) @ Vge, Ic:3.2V @ 15V, 70A
Power - Max:961 W
Switching Energy:3.82mJ (on), 2.58mJ (off)
Input Type:Standard
Gate Charge:544 nC
Td (on/off) @ 25°C:33ns/278ns
Test Condition:600V, 70A, 4.3Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-3, TO-264AA
Supplier Device Package:TO-264
