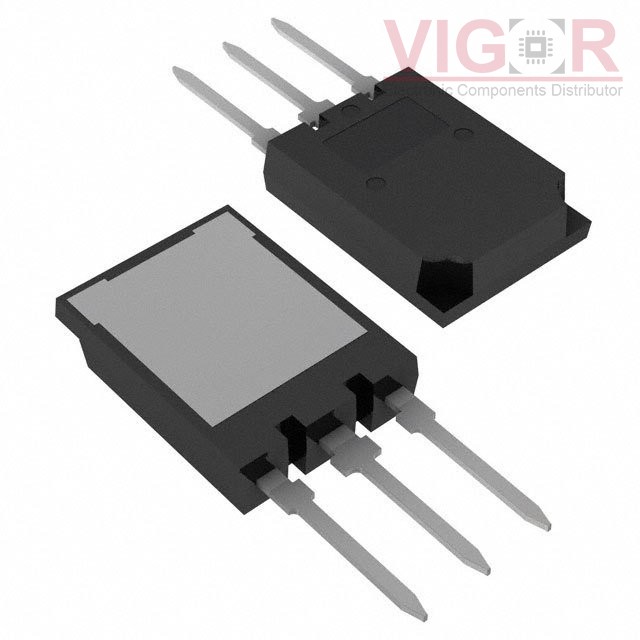

IKQ40N120CT2XKSA1

IKQ40N120CT2XKSA1

Image is for reference,
please contact us to get the real picture

Part No :

IKQ40N120CT2XKSA1

Manufacturer
IR (Infineon Technologies)
Description
IGBT TRENCH/FS 1200V 80A TO247-3
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
IKQ40N120CT2XKSA1 PDF
Availability
234 pieces
Unit Price
$10.22000

Current price of IKQ40N120CT2XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IKQ40N120CT2XKSA1 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):160 A
Vce(on) (Max) @ Vge, Ic:2.15V @ 15V, 40A
Power - Max:500 W
Switching Energy:3.1mJ (on), 2.9mJ (off)
Input Type:Standard
Gate Charge:190 nC
Td (on/off) @ 25°C:32ns/328ns
Test Condition:600V, 40A, 12Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-40°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:PG-TO247-3-46
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IKW30N65NL5XKSA1

IKW30N65NL5XKSA1

IKW30N65 - DISCRETE IGBT WITH AN

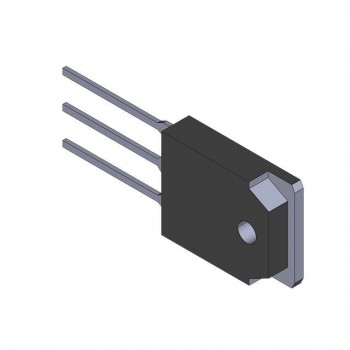

HOT SGH20N120RUFDTU

SGH20N120RUFDTU

IGBT, 32A, 1200V, N-CHANNEL

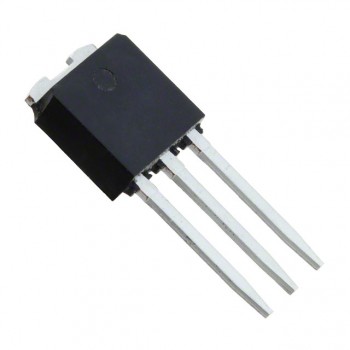

HOT STGD18N40LZ-1
