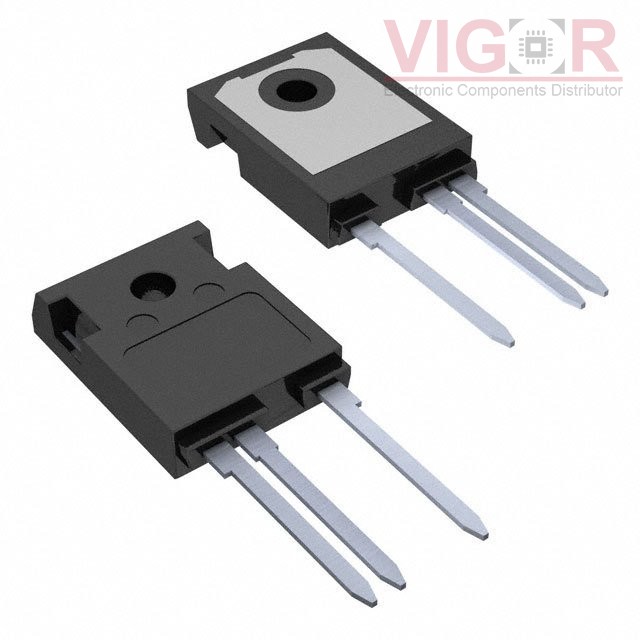

IXBH20N360HV

IXBH20N360HV

Image is for reference,
please contact us to get the real picture

Part No :

IXBH20N360HV

Manufacturer
Wickmann / Littelfuse
Description
IGBT 3600V 70A TO-247HV
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
IXBH20N360HV PDF
Availability
61030 pieces
Unit Price
$106.63000

Current price of IXBH20N360HV is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXBH20N360HV Specifications
Type Description
Series:BIMOSFET™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):3600 V
Current - Collector (Ic) (Max):70 A
Current - Collector Pulsed (Icm):220 A
Vce(on) (Max) @ Vge, Ic:3.4V @ 15V, 20A
Power - Max:430 W
Switching Energy:15.5mJ (on), 4.3mJ (off)
Input Type:Standard
Gate Charge:110 nC
Td (on/off) @ 25°C:18ns/238ns
Test Condition:1500V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):1.7 µs
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3 Variant
Supplier Device Package:TO-247HV
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT APT70GR65B

APT70GR65B

IGBT 650V 134A 595W TO-247
HOT IXGH6N170

IXGH6N170

IGBT 1700V 12A 75W TO247

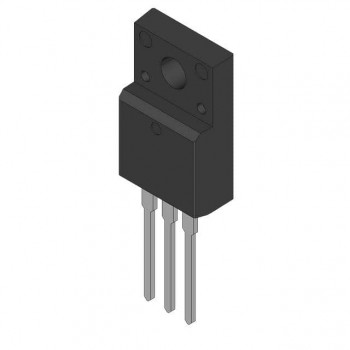

HOT IRG4BC30WPBF
