STGW75H65DFB2-4

STGW75H65DFB2-4

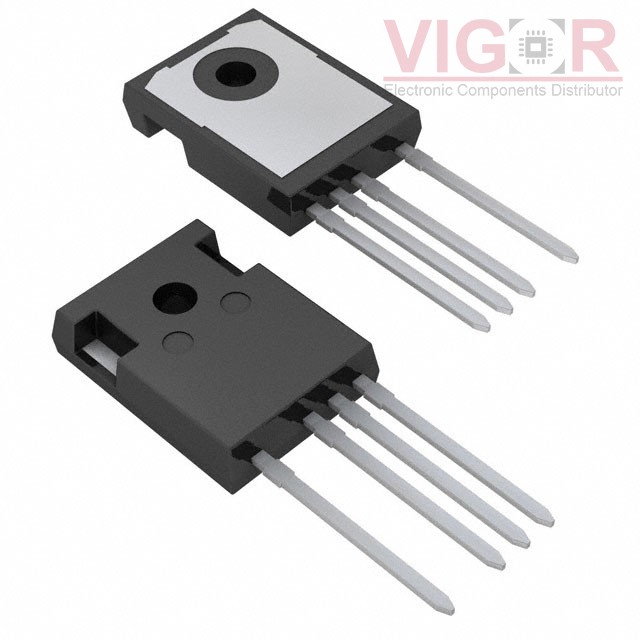

Image is for reference,
please contact us to get the real picture

Part No :

STGW75H65DFB2-4

Manufacturer
STMicroelectronics
Description
TRENCH GATE FIELD-STOP, 650 V, 7
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
STGW75H65DFB2-4 PDF
Availability
75 pieces
Unit Price
$5.62000

Current price of STGW75H65DFB2-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGW75H65DFB2-4 Specifications
Type Description
Series:HB2
Package:Tube
Part Status:Active
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):650 V
Current - Collector (Ic) (Max):115 A
Current - Collector Pulsed (Icm):225 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 75A
Power - Max:357 W
Switching Energy:992µJ (on), 766µJ (off)
Input Type:Standard
Gate Charge:207 nC
Td (on/off) @ 25°C:22ns/121ns
Test Condition:400V, 75A, 10Ohm, 15V
Reverse Recovery Time (trr):88 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-4
Supplier Device Package:TO-247-4
