STGW30V60F

Image is for reference,
please contact us to get the real picture

Part No :: STGW30V60F

Manufacturer: STMicroelectronics

Description: IGBT 600V 60A 260W TO247

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: STGW30V60F PDF

Availability: 0 pieces

Unit Price: ~~$2.97000~~

Current price of STGW30V60F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGW30V60F Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	60 A
Current - Collector Pulsed (Icm):	120 A
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 30A
Power - Max:	260 W
Switching Energy:	383µJ (on), 233µJ (off)
Input Type:	Standard
Gate Charge:	163 nC
Td (on/off) @ 25°C:	45ns/189ns
Test Condition:	400V, 30A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

IKW15T120FKSA1

IGBT 1200V 30A 110W TO247-3

HOT

IKW50N65RH5XKSA1

INDUSTRY 14

HOT

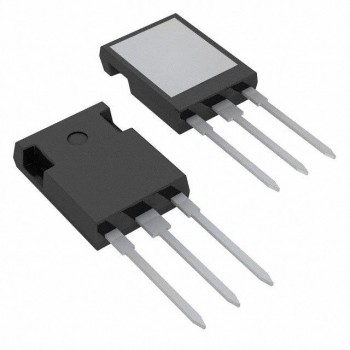

IXGR55N120A3H1
