SGL50N60RUFDTU

SGL50N60RUFDTU

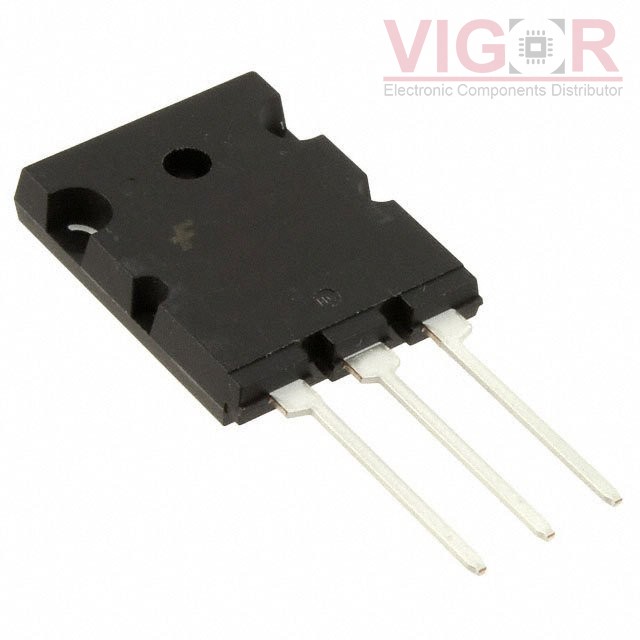

Image is for reference,
please contact us to get the real picture

Part No :

SGL50N60RUFDTU

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IGBT 600V 80A TO264-3
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
SGL50N60RUFDTU PDF
Availability
318 pieces
Unit Price
$7.98000

Current price of SGL50N60RUFDTU is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SGL50N60RUFDTU Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):80 A
Current - Collector Pulsed (Icm):150 A
Vce(on) (Max) @ Vge, Ic:2.8V @ 15V, 50A
Power - Max:250 W
Switching Energy:1.68mJ (on), 1.03mJ (off)
Input Type:Standard
Gate Charge:145 nC
Td (on/off) @ 25°C:26ns/66ns
Test Condition:300V, 50A, 5.9Ohm, 15V
Reverse Recovery Time (trr):100 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-264-3, TO-264AA
Supplier Device Package:TO-264-3
