IXGC12N60CD1

IXGC12N60CD1

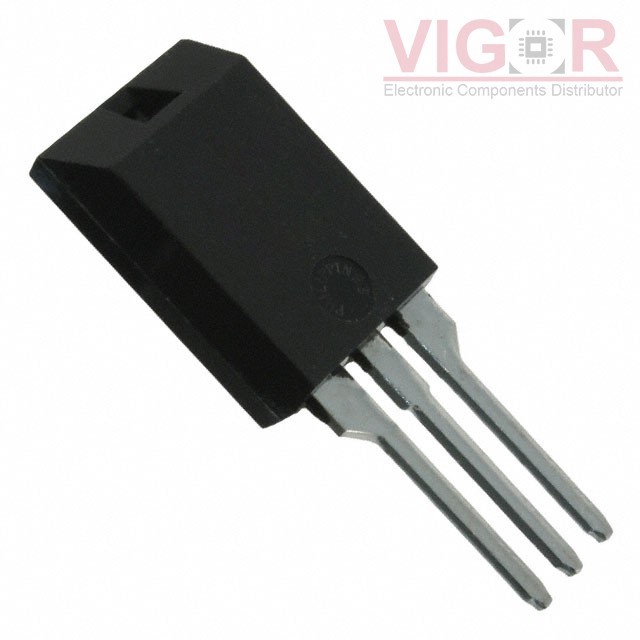

Image is for reference,
please contact us to get the real picture

Part No :

IXGC12N60CD1

Manufacturer
Wickmann / Littelfuse
Description
IGBT 600V 15A 85W ISOPLUS220
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IXGC12N60CD1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IXGC12N60CD1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXGC12N60CD1 Specifications
Type Description
Series:HiPerFAST™
Package:Tube
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):15 A
Current - Collector Pulsed (Icm):48 A
Vce(on) (Max) @ Vge, Ic:2.7V @ 15V, 12A
Power - Max:85 W
Switching Energy:90µJ (off)
Input Type:Standard
Gate Charge:32 nC
Td (on/off) @ 25°C:20ns/60ns
Test Condition:480V, 12A, 18Ohm, 15V
Reverse Recovery Time (trr):35 ns
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:ISOPLUS220™
Supplier Device Package:ISOPLUS220™
