IXGC16N60B2

IXGC16N60B2

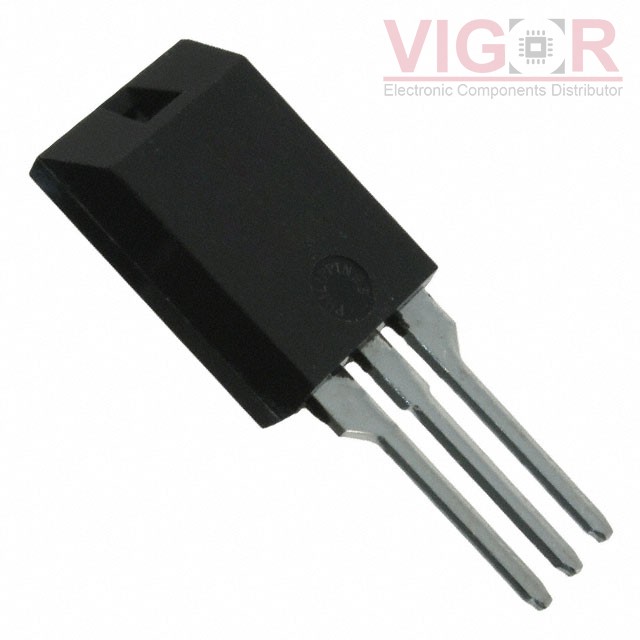

Image is for reference,
please contact us to get the real picture

Part No :

IXGC16N60B2

Manufacturer
Wickmann / Littelfuse
Description
IGBT 600V 28A 63W ISOPLUS220
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
IXGC16N60B2 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IXGC16N60B2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXGC16N60B2 Specifications
Type Description
Series:HiPerFAST™
Package:Tube
Part Status:Obsolete
IGBT Type:PT
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):28 A
Current - Collector Pulsed (Icm):100 A
Vce(on) (Max) @ Vge, Ic:2.3V @ 15V, 12A
Power - Max:63 W
Switching Energy:150mJ (off)
Input Type:Standard
Gate Charge:32 nC
Td (on/off) @ 25°C:25ns/70ns
Test Condition:400V, 12A, 22Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:ISOPLUS220™
Supplier Device Package:ISOPLUS220™
