RJH60D7DPM-00#T1

RJH60D7DPM-00#T1

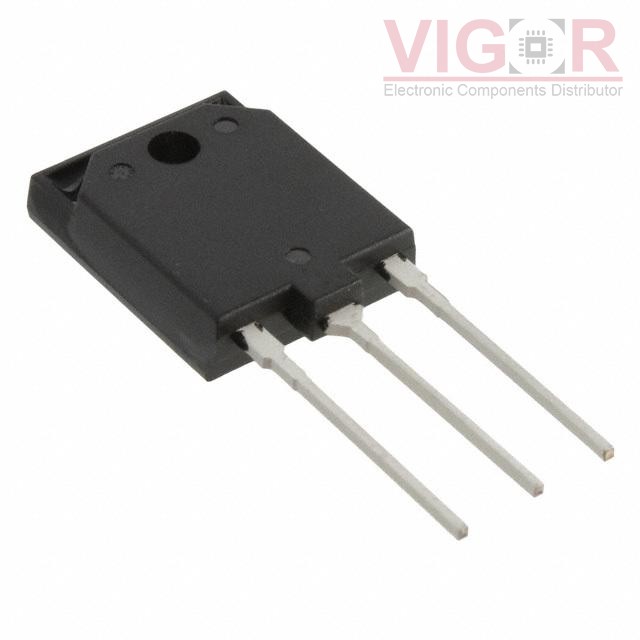

Image is for reference,
please contact us to get the real picture

Part No :

RJH60D7DPM-00#T1

Manufacturer
Renesas Electronics America
Description
IGBT 600V 90A 55W TO3PFM
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
RJH60D7DPM-00#T1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of RJH60D7DPM-00#T1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RJH60D7DPM-00#T1 Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
IGBT Type:Trench
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):90 A
Current - Collector Pulsed (Icm):-
Vce(on) (Max) @ Vge, Ic:2.2V @ 15V, 50A
Power - Max:55 W
Switching Energy:1.1mJ (on), 600µJ (off)
Input Type:Standard
Gate Charge:130 nC
Td (on/off) @ 25°C:60ns/190ns
Test Condition:300V, 50A, 5Ohm, 15V
Reverse Recovery Time (trr):100 ns
Operating Temperature:150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3PFM, SC-93-3
Supplier Device Package:TO-3PFM
