NGB8202ANTF4G

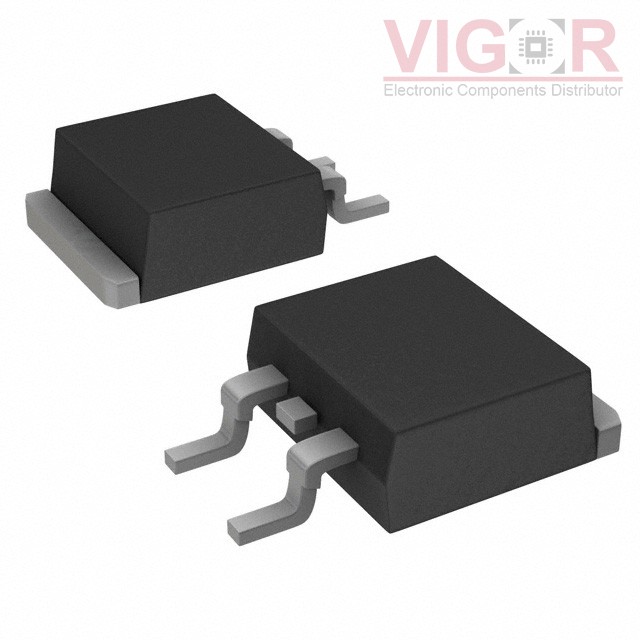

Image is for reference,
please contact us to get the real picture

Part No :: NGB8202ANTF4G

Manufacturer: Wickmann / Littelfuse

Description: IGBT 440V 20A 150W D2PAK

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: NGB8202ANTF4G PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of NGB8202ANTF4G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NGB8202ANTF4G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	440 V
Current - Collector (Ic) (Max):	20 A
Current - Collector Pulsed (Icm):	50 A
Vce(on) (Max) @ Vge, Ic:	1.9V @ 4.5V, 20A
Power - Max:	150 W
Switching Energy:	-
Input Type:	Logic
Gate Charge:	-
Td (on/off) @ 25°C:	-/5µs
Test Condition:	300V, 9A, 1kOhm, 5V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK-3

Please confirm the specifications of the products when ordering.
