NGD8201NT4G

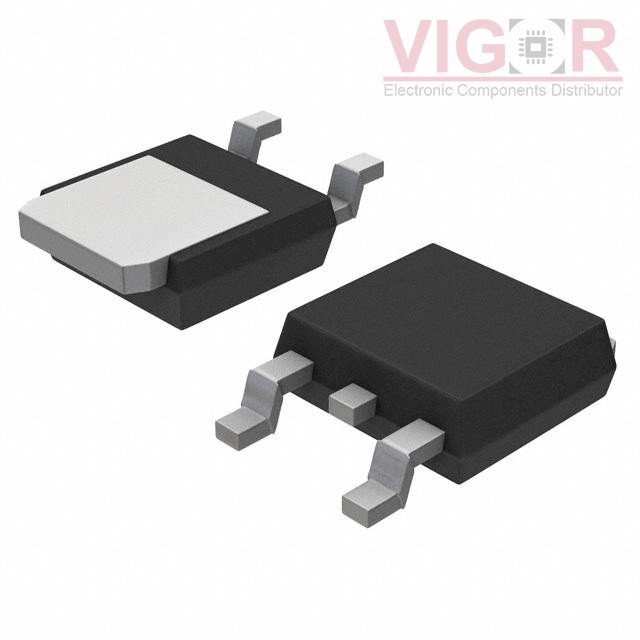

Image is for reference,
please contact us to get the real picture

Part No :: NGD8201NT4G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: IGBT 440V 20A 125W DPAK

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: NGD8201NT4G PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of NGD8201NT4G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NGD8201NT4G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	440 V
Current - Collector (Ic) (Max):	20 A
Current - Collector Pulsed (Icm):	50 A
Vce(on) (Max) @ Vge, Ic:	1.9V @ 4.5V, 20A
Power - Max:	125 W
Switching Energy:	-
Input Type:	Logic
Gate Charge:	-
Td (on/off) @ 25°C:	-/5µs
Test Condition:	300V, 9A, 1kOhm, 5V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	DPAK
