STGFL6NC60DI

STGFL6NC60DI

Image is for reference,
please contact us to get the real picture

Part No :

STGFL6NC60DI

Manufacturer
STMicroelectronics
Description
IGBT 600V 7A 22W TO220FP
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
STGFL6NC60DI PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of STGFL6NC60DI is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

STGFL6NC60DI Specifications
Type Description
Series:PowerMESH™
Package:Tube
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):7 A
Current - Collector Pulsed (Icm):18 A
Vce(on) (Max) @ Vge, Ic:2.9V @ 15V, 3A
Power - Max:22 W
Switching Energy:32µJ (on), 24µJ (off)
Input Type:Standard
Gate Charge:12 nC
Td (on/off) @ 25°C:6.7ns/46ns
Test Condition:390V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr):23 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220FP
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IRG4IBC30UD

IRG4IBC30UD

IGBT 600V 17A 45W TO220FP
HOT STGW45NC60WD

STGW45NC60WD

IGBT 600V 90A 285W TO247

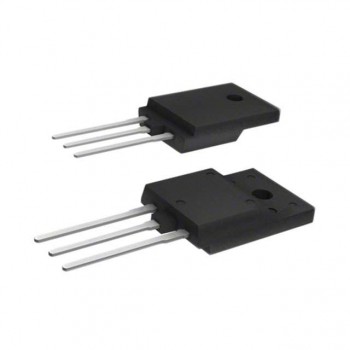

HOT IRG4IBC20FD
