IRG4BC20KD-S

IRG4BC20KD-S

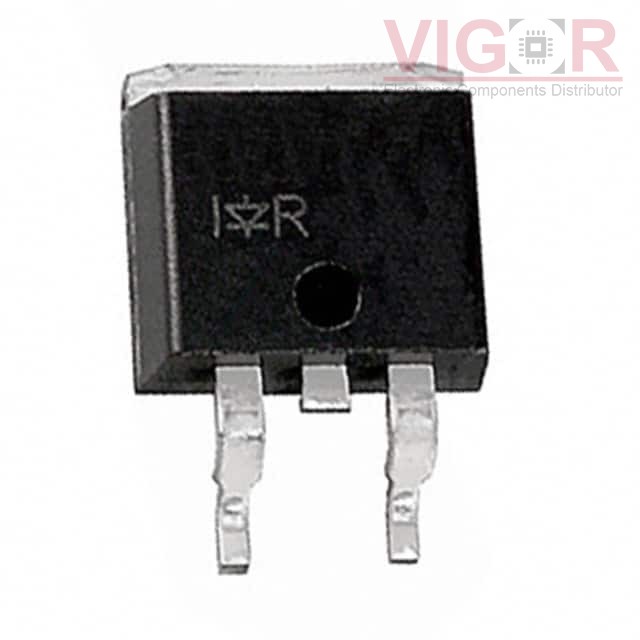

Image is for reference,
please contact us to get the real picture

Part No :

IRG4BC20KD-S

Manufacturer
IR (Infineon Technologies)
Description
IGBT 600V 16A 60W D2PAK
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
IRG4BC20KD-S PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRG4BC20KD-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRG4BC20KD-S Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):16 A
Current - Collector Pulsed (Icm):32 A
Vce(on) (Max) @ Vge, Ic:2.8V @ 15V, 9A
Power - Max:60 W
Switching Energy:340µJ (on), 300µJ (off)
Input Type:Standard
Gate Charge:34 nC
Td (on/off) @ 25°C:54ns/180ns
Test Condition:480V, 9A, 50Ohm, 15V
Reverse Recovery Time (trr):37 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:D2PAK
