IRGIB6B60KD116P

IRGIB6B60KD116P

Image is for reference,
please contact us to get the real picture

Part No :

IRGIB6B60KD116P

Manufacturer
IR (Infineon Technologies)
Description
IGBT 600V 11A 38W TO220FP
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
IRGIB6B60KD116P PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRGIB6B60KD116P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRGIB6B60KD116P Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
IGBT Type:NPT
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):11 A
Current - Collector Pulsed (Icm):22 A
Vce(on) (Max) @ Vge, Ic:2.2V @ 15V, 5A
Power - Max:38 W
Switching Energy:110µJ (on), 135µJ (off)
Input Type:Standard
Gate Charge:18.2 nC
Td (on/off) @ 25°C:25ns/215ns
Test Condition:400V, 5A, 100Ohm, 15V
Reverse Recovery Time (trr):70 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-220-3 Full Pack
Supplier Device Package:TO-220AB Full-Pak
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT IXDH30N120

IXDH30N120

IGBT 1200V 60A 300W TO247AD
HOT IXGQ30N60C2D4

IXGQ30N60C2D4

IGBT 600V 30A TO3P

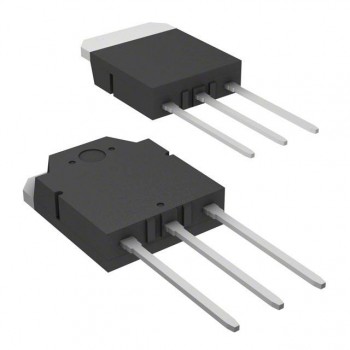

HOT RJH60F4DPK-00#T0
