IRG4RC20F

IRG4RC20F

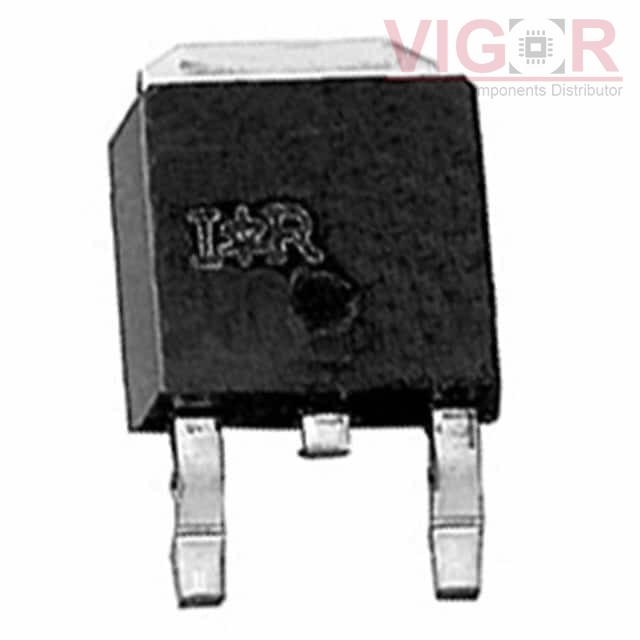

Image is for reference,
please contact us to get the real picture

Part No :

IRG4RC20F

Manufacturer
IR (Infineon Technologies)
Description
IGBT 600V 22A 66W DPAK
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
IRG4RC20F PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRG4RC20F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRG4RC20F Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):22 A
Current - Collector Pulsed (Icm):44 A
Vce(on) (Max) @ Vge, Ic:2.1V @ 15V, 12A
Power - Max:66 W
Switching Energy:190µJ (on), 920µJ (off)
Input Type:Standard
Gate Charge:27 nC
Td (on/off) @ 25°C:26ns/194ns
Test Condition:480V, 12A, 50Ohm, 15V
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:D-Pak
