NGD15N41CLT4

NGD15N41CLT4

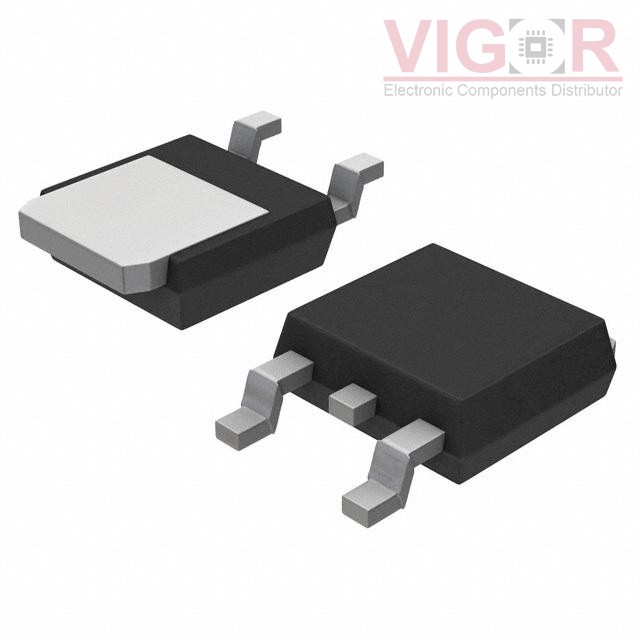

Image is for reference,
please contact us to get the real picture

Part No :

NGD15N41CLT4

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IGBT 440V 15A 107W DPAK
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
NGD15N41CLT4 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of NGD15N41CLT4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

NGD15N41CLT4 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):440 V
Current - Collector (Ic) (Max):15 A
Current - Collector Pulsed (Icm):50 A
Vce(on) (Max) @ Vge, Ic:2.2V @ 4V, 10A
Power - Max:107 W
Switching Energy:-
Input Type:Logic
Gate Charge:-
Td (on/off) @ 25°C:-/4µs
Test Condition:300V, 6.5A, 1kOhm
Reverse Recovery Time (trr):-
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:DPAK
