IXBL20N300C

IXBL20N300C

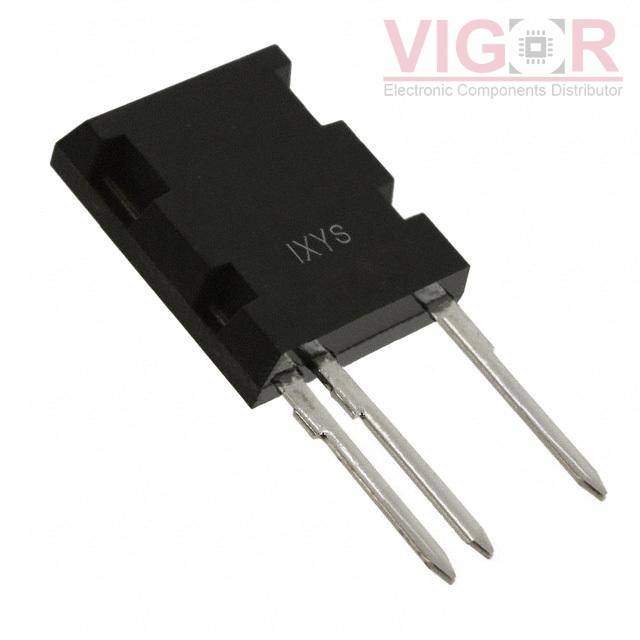

Image is for reference,
please contact us to get the real picture

Part No :

IXBL20N300C

Manufacturer
Wickmann / Littelfuse
Description
IGBT 3000V
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
IXBL20N300C PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IXBL20N300C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IXBL20N300C Specifications
Type Description
Series:BIMOSFET™
Package:Tube
Part Status:Active
IGBT Type:-
Voltage - Collector Emitter Breakdown (Max):3000 V
Current - Collector (Ic) (Max):50 A
Current - Collector Pulsed (Icm):430 A
Vce(on) (Max) @ Vge, Ic:6V @ 15V, 20A
Power - Max:417 W
Switching Energy:23mJ (on), 2.6mJ (off)
Input Type:Standard
Gate Charge:425 nC
Td (on/off) @ 25°C:33ns/370ns
Test Condition:1500V, 20A, 3Ohm, 15V
Reverse Recovery Time (trr):864 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:ISOPLUSi5-Pak™
Supplier Device Package:ISOPLUSi5-Pak™
