FGA25N120FTD

Image is for reference,
please contact us to get the real picture

Part No :

FGA25N120FTD

Manufacturer
Sanyo Semiconductor/ON Semiconductor
Description
IGBT 1200V 50A 313W TO3P
Catalog
Transistors - IGBTs - Single
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
FGA25N120FTD PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of FGA25N120FTD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:-
Package:Tube
Part Status:Obsolete
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):1200 V
Current - Collector (Ic) (Max):50 A
Current - Collector Pulsed (Icm):75 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 25A
Power - Max:313 W
Switching Energy:340µJ (on), 900µJ (off)
Input Type:Standard
Gate Charge:160 nC
Td (on/off) @ 25°C:48ns/210ns
Test Condition:600V, 25A, 15Ohm, 15V
Reverse Recovery Time (trr):770 ns
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-3P-3, SC-65-3
Supplier Device Package:TO-3P
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
HOT NGB8204NT4

NGB8204NT4

IGBT 430V 18A 115W D2PAK

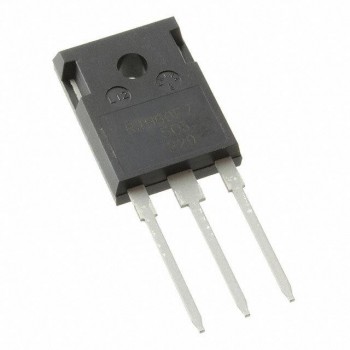

HOT RJP65T43DPQ-A0#T2

RJP65T43DPQ-A0#T2

IGBT TRENCH 650V 60A TO247A

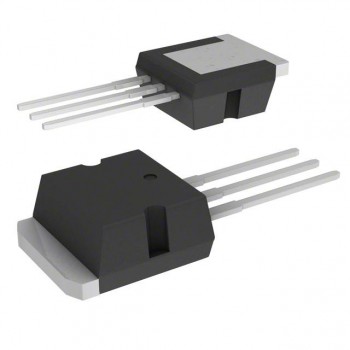

HOT STGB18N40LZ-1
