RJH1CV5DPK-00#T0

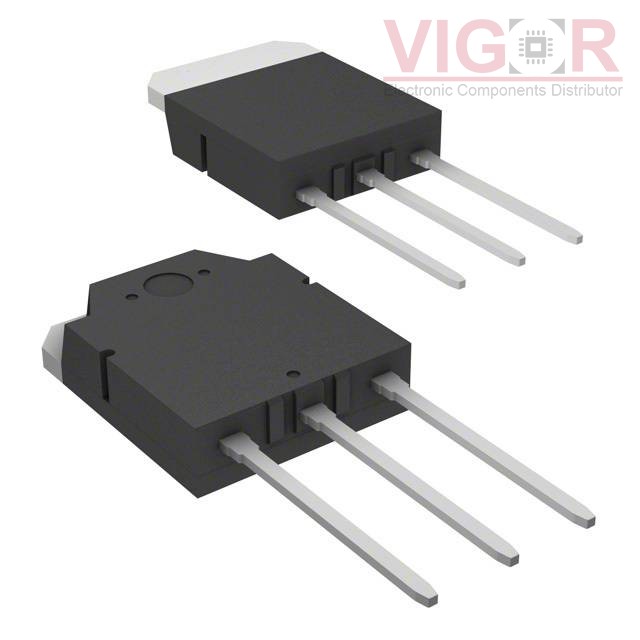

Image is for reference,
please contact us to get the real picture

Part No :: RJH1CV5DPK-00#T0

Manufacturer: Renesas Electronics America

Description: IGBT 1200V 50A 245W TO-3P

Catalog: Transistors - IGBTs - Single

Shipped from: HK warehouse

Expected Shipping Date: Aug 10 - Aug 14 2025

DataSheet: RJH1CV5DPK-00#T0 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of RJH1CV5DPK-00#T0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

RJH1CV5DPK-00#T0 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Last Time Buy
IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	50 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	2.6V @ 15V, 25A
Power - Max:	245 W
Switching Energy:	1.9mJ (on), 1.5mJ (off)
Input Type:	Standard
Gate Charge:	72 nC
Td (on/off) @ 25°C:	42ns/105ns
Test Condition:	600V, 25A, 5Ohm, 15V
Reverse Recovery Time (trr):	170 ns
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-3P-3, SC-65-3
Supplier Device Package:	TO-3P
