PMBFJ309,215

PMBFJ309,215

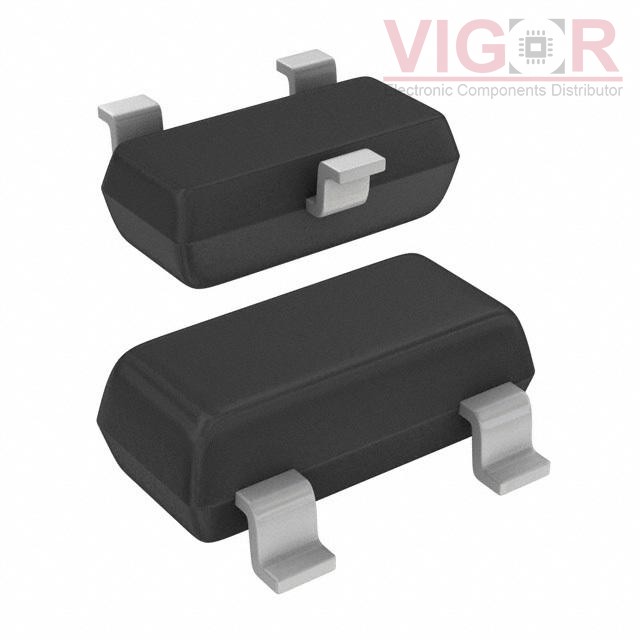

Image is for reference,
please contact us to get the real picture

Part No :

PMBFJ309,215

Manufacturer
NXP Semiconductors
Description
JFET N-CH 25V 250MW SOT23
Catalog
Transistors - JFETs
Shipped from
HK warehouse
Expected Shipping Date
Jul 08 - Jul 12 2025
DataSheet
PMBFJ309,215 PDF
Availability
0 pieces
Unit Price
$0.48000

Current price of PMBFJ309,215 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PMBFJ309,215 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:N-Channel
Voltage - Breakdown (V(BR)GSS):25 V
Drain to Source Voltage (Vdss):25 V
Current - Drain (Idss) @ Vds (Vgs=0):12 mA @ 10 V
Current Drain (Id) - Max:-
Voltage - Cutoff (VGS off) @ Id:1 V @ 1 µA
Input Capacitance (Ciss) (Max) @ Vds:5pF @ 10V
Resistance - RDS(On):50 Ohms
Power - Max:250 mW
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:TO-236-3, SC-59, SOT-23-3
Supplier Device Package:SOT-23 (TO-236AB)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
