Type | Description |
---|---|
Series: | UF25GC |
Package: | Bulk |
Part Status: | Active |
Voltage - Rated: | 115VAC |
Size / Dimension: | Round - 254mm Dia |
Width: | 89.00mm |
Air Flow: | 550.0 CFM (15.40m³/min) |
Static Pressure: | 0.400 in H2O (99.6 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | Permanent Split Capacitor Motor, Thermal Overload Protector (TOP) |
Noise: | 55.0dB(A) |
Power (Watts): | 33.00W |
RPM: | 1650 RPM |
Termination: | 2 Wire Leads |
Ingress Protection: | IP55 - Dust Protected, Water Resistant |
Operating Temperature: | -40 ~ 158°F (-40 ~ 70°C) |
Approval Agency: | CE, cUL, TUV, UL |
Weight: | 4.1 lbs (1.9 kg) |

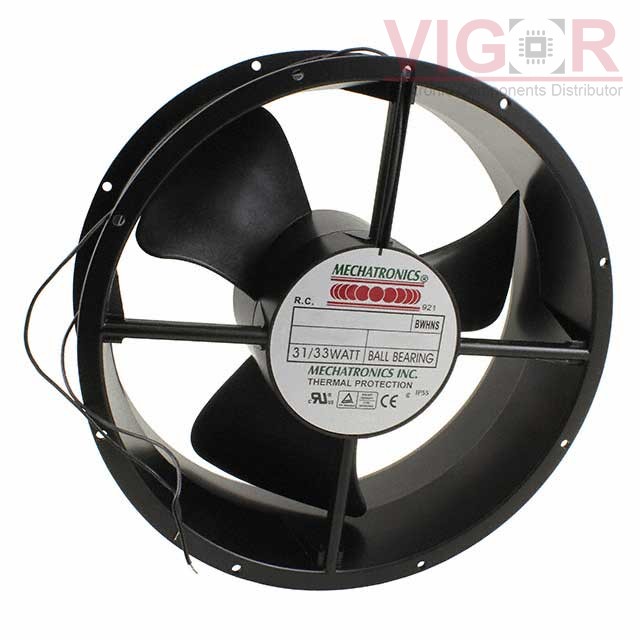

FAN AXIAL 254X89MM 115VAC IP55
