Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of UF15KC23-BWHR-B1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | UF15KC |
Package: | Bulk |
Part Status: | Active |
Voltage - Rated: | 230VAC |
Size / Dimension: | Rectangular/Rounded - 172mm L x 150mm H |
Width: | 55.00mm |
Air Flow: | 293.0 CFM (8.20m³/min) |
Static Pressure: | 0.900 in H2O (224.2 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | Permanent Split Capacitor Motor, Speed Sensor (Tach), Thermal Overload Protector (TOP) |
Noise: | 60.0dB(A) |
Power (Watts): | 38.00W |
RPM: | 3400 RPM |
Termination: | 3 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | -40 ~ 158°F (-40 ~ 70°C) |
Approval Agency: | CE, cUL, TUV, UL |
Weight: | 2.3 lbs (1 kg) |

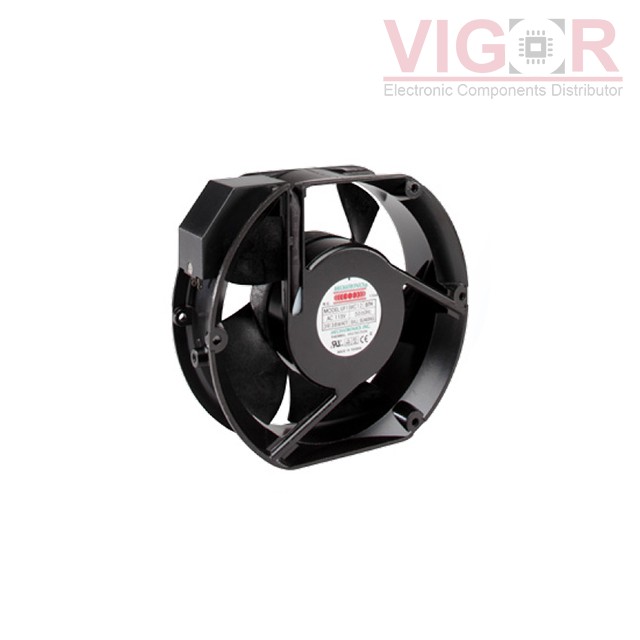

FAN AXIAL 172X150X55MM 230VAC TA
