Type | Description |
---|---|
Series: | 4710KL |
Package: | Box |
Part Status: | Active |
Voltage - Rated: | 12VDC |
Size / Dimension: | Square - 119mm L x 119mm H |
Width: | 25.50mm |
Air Flow: | 75.9 CFM (2.13m³/min) |
Static Pressure: | 0.100 in H2O (24.9 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | Locked Rotor Sensor |
Noise: | 31.0dB |
Power (Watts): | 2.28 W |
RPM: | 1900 RPM |
Termination: | 3 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
Approval Agency: | CE, CSA, UL, VDE |
Weight: | 0.397 lb (180.08 g) |
CIR BRKR THRM-MAG 100A 28VDC

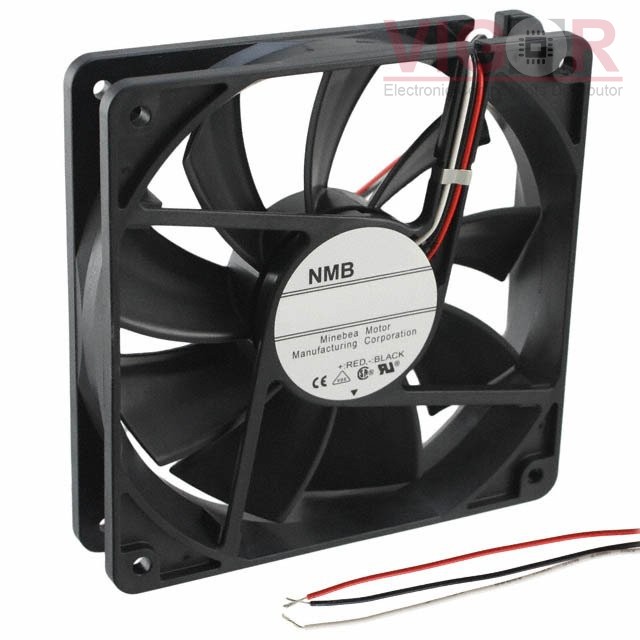

FAN AXIAL 119X25.5MM 12VDC WIRE
