Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of FDD1-17238DBAW49-L is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | HPLC, FDD1-17238 |
Package: | Bulk |
Part Status: | Active |
Voltage - Rated: | 24VDC |
Size / Dimension: | Rectangular/Rounded - 172mm L x 151mm H |
Width: | 38.50mm |
Air Flow: | 210.0 CFM (5.88m³/min) |
Static Pressure: | 0.571 in H2O (142.2 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | PWM Control |
Noise: | 52.0dB(A) |
Power (Watts): | 13 W |
RPM: | 2800 RPM |
Termination: | 2 Wire Leads |
Ingress Protection: | IP54 - Dust Protected, Water Resistant |
Operating Temperature: | -4 ~ 158°F (-20 ~ 70°C) |
Approval Agency: | CE, cURus, TUV |
Weight: | 1.9 lbs (861.8 g) |

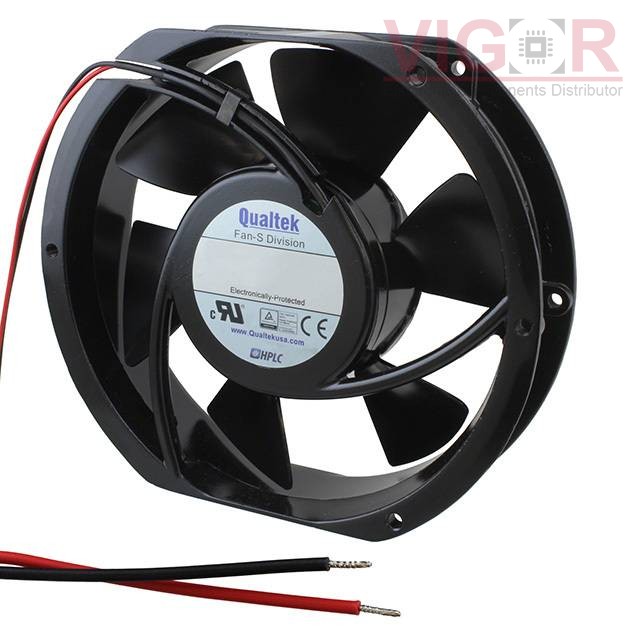

FAN AXIAL 172X38.5MM 24VDC WIRE
