Type | Description |
---|---|
Series: | - |
Package: | Box |
Part Status: | Active |
Voltage - Rated: | 12VDC |
Size / Dimension: | Square - 80mm L x 80mm H |
Width: | 25.40mm |
Air Flow: | 55.6 CFM (1.56m³/min) |
Static Pressure: | 0.180 in H2O (44.8 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | Locked Rotor Protection |
Noise: | 37.0dB(A) |
Power (Watts): | 3.84 W |
RPM: | 4000 RPM |
Termination: | 2 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
Approval Agency: | CE, cURus, TUV |
Weight: | 0.188 lb (85.28 g) |

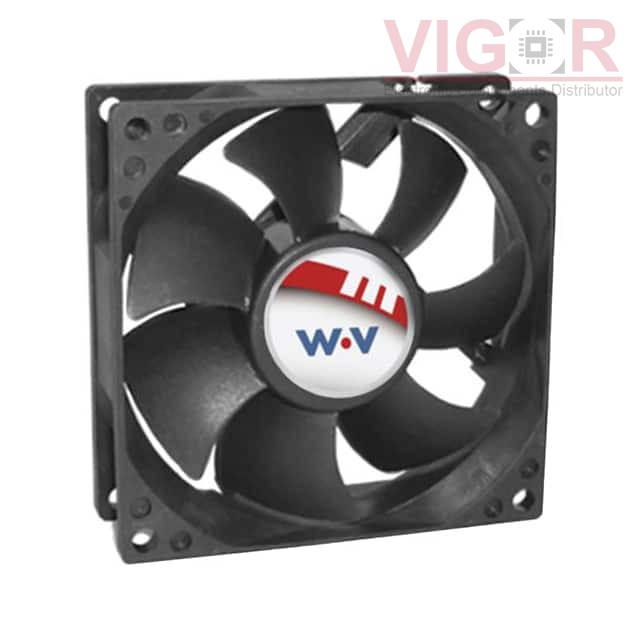

FAN 12VDC 80X25MM 2WIRES
