Current price of ODB250110-24HB10A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Bulk |
Part Status: | Active |
Voltage - Rated: | 24VDC |
Size / Dimension: | Round - 250mm Dia |
Width: | 106.5mm |
Air Flow: | 790.0 CFM (22.12m³/min) |
Static Pressure: | 2.220 in H2O (553.0 Pa) |
Bearing Type: | Ball |
Fan Type: | Motorized Impellers |
Features: | PWM Control, Speed Sensor (Tach) |
Noise: | 78.0dB |
Power (Watts): | 130 W |
RPM: | 2600 RPM |
Termination: | 4 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | 14 ~ 149°F (-10 ~ 65°C) |
Approval Agency: | CE, cURus, TUV, UR |
Weight: | 5.1 lbs (2.3 kg) |
CAP ALUM 330UF 20% 400V SNAP
CAP FILM 0.47UF 20% 1KVDC RADIAL

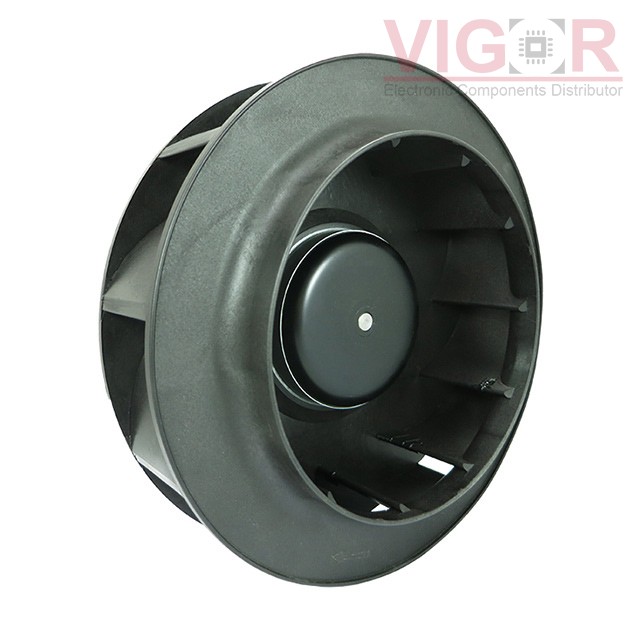

FAN IMP MTRZD 250X106.5MM 24VDC
