LCF080602B750TG

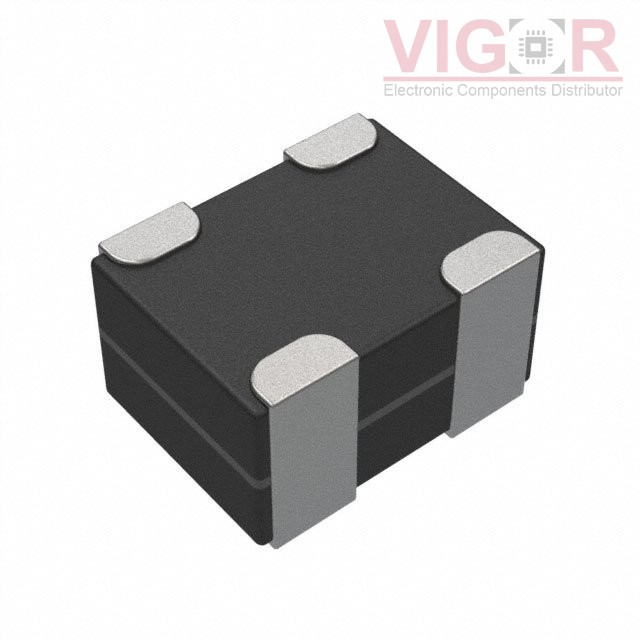

Image is for reference,
please contact us to get the real picture

Part No :: LCF080602B750TG

Manufacturer: Wickmann / Littelfuse

Description: CMC 2LN 110MA 75 OHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: LCF080602B750TG PDF

Availability: 0 pieces

Unit Price: ~~$0.22000~~

Current price of LCF080602B750TG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LCF080602B750TG Specifications

Type	Description
Series:	LCF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	75 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	110mA
DC Resistance (DCR) (Max):	5Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.034" L x 0.026" W (0.87mm x 0.67mm)
Height (Max):	0.022" (0.55mm)
Package / Case:	0302 (0806 Metric), 4 Lead
