B82726S6203A040

B82726S6203A040

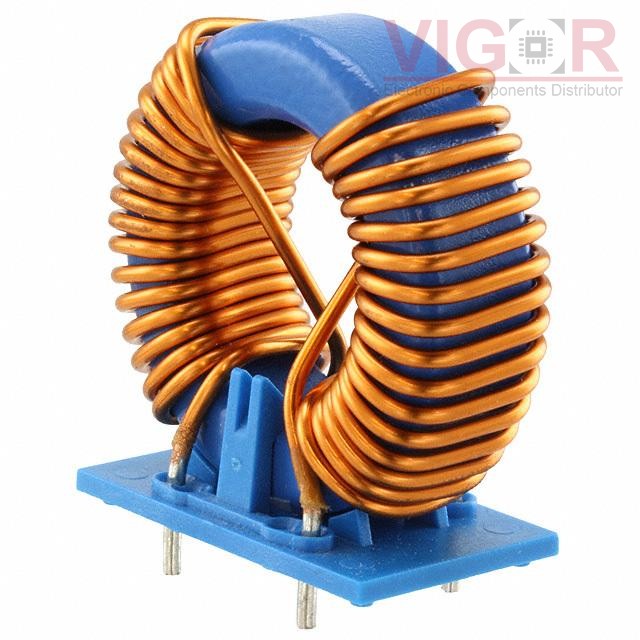

Image is for reference,
please contact us to get the real picture

Part No :

B82726S6203A040

Manufacturer
TDK EPCOS
Description
CMC 1.5MH 24A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B82726S6203A040 PDF
Availability
120 pieces
Unit Price
$13.48000

Current price of B82726S6203A040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82726S6203A040 Specifications
Type Description
Series:B82726
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:1.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):24A
DC Resistance (DCR) (Max):3.2mOhm (Typ)
Voltage Rating - DC:1000V (1kV)
Voltage Rating - AC:600V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:UR
Features:-
Mounting Type:Through Hole
Size / Dimension:2.165" L x 1.339" W (55.00mm x 34.00mm)
Height (Max):2.047" (52.00mm)
Package / Case:Horizontal, 4 PC Pin
