UF1717H-282Y0R5-01

UF1717H-282Y0R5-01

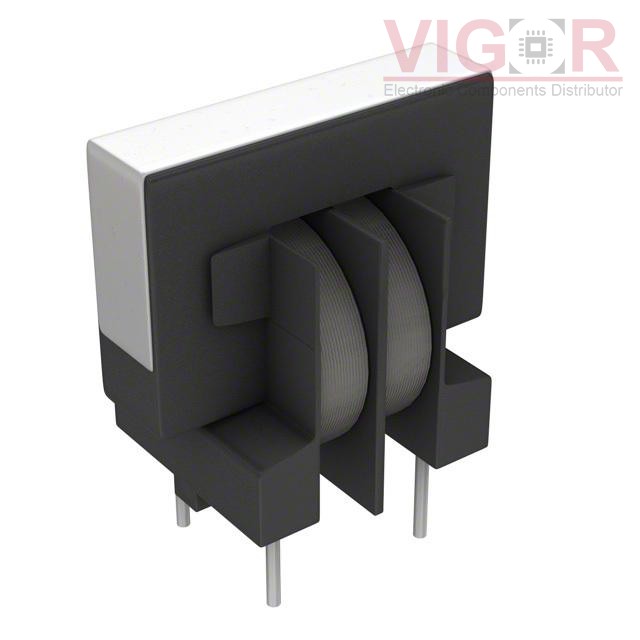

Image is for reference,
please contact us to get the real picture

Part No :

UF1717H-282Y0R5-01

Manufacturer
TDK Corporation
Description
CMC 2.8MH 500MA 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
UF1717H-282Y0R5-01 PDF
Availability
69 pieces
Unit Price
$5.33000

Current price of UF1717H-282Y0R5-01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

UF1717H-282Y0R5-01 Specifications
Type Description
Series:UF
Package:Bulk
Part Status:Obsolete
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:2.8 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):500mA
DC Resistance (DCR) (Max):1Ohm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-20°C ~ 120°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:0.689" L x 0.610" W (17.50mm x 15.50mm)
Height (Max):0.492" (12.50mm)
Package / Case:Horizontal, 4 PC Pin
