PLT5BPH5013R1SNL

PLT5BPH5013R1SNL

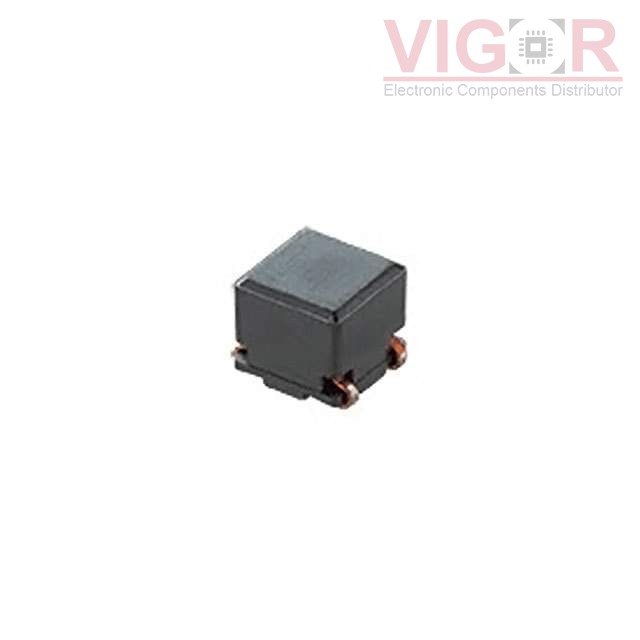

Image is for reference,
please contact us to get the real picture

Part No :

PLT5BPH5013R1SNL

Manufacturer
TOKO / Murata
Description
CMC 1.8A 2LN 500OHM SMD AEC-Q200
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
PLT5BPH5013R1SNL PDF
Availability
190 pieces
Unit Price
$1.70000

Current price of PLT5BPH5013R1SNL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PLT5BPH5013R1SNL Specifications
Type Description
Series:PLT5BPH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:500 Ohms @ 10 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):1.8A
DC Resistance (DCR) (Max):22.1mOhm
Voltage Rating - DC:80V
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 150°C
Ratings:AEC-Q200
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.197" L x 0.197" W (5.00mm x 5.00mm)
Height (Max):0.197" (5.00mm)
Package / Case:Vertical, 4 PC Pad
