ACM2520-801-3P

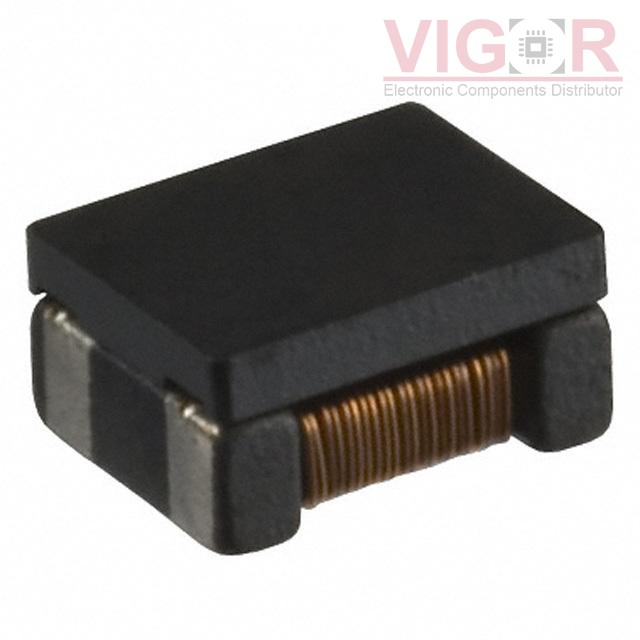

Image is for reference,
please contact us to get the real picture

Part No :: ACM2520-801-3P

Manufacturer: TDK Corporation

Description: CMC 150MA 3LN 800 OHM SMD

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 19 - Jul 23 2025

DataSheet: ACM2520-801-3P PDF

Availability: 0 pieces

Unit Price: ~~$0.42000~~

Current price of ACM2520-801-3P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ACM2520-801-3P Specifications

Type	Description
Series:	ACM
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Filter Type:	Signal Line
Number of Lines:	3
Impedance @ Frequency:	800 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	150mA
DC Resistance (DCR) (Max):	1.6Ohm
Voltage Rating - DC:	20V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height (Max):	0.051" (1.30mm)
Package / Case:	1008 (2520 Metric), 6 PC Pad
