EH20-1.2-02-3M3

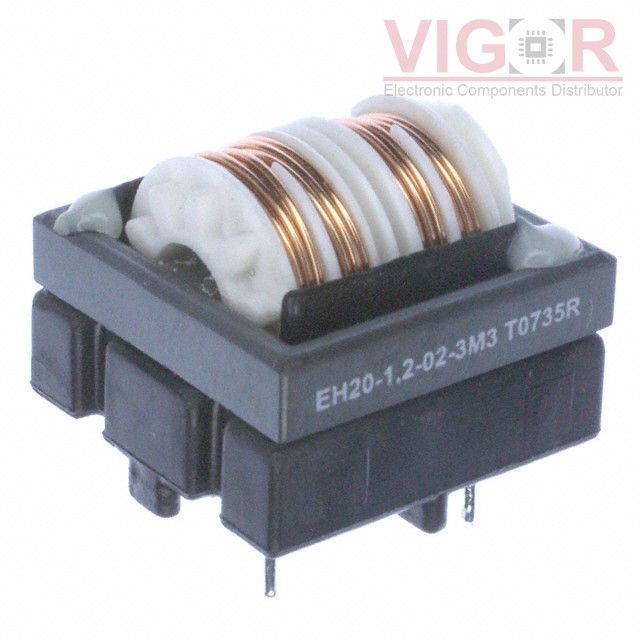

Image is for reference,
please contact us to get the real picture

Part No :: EH20-1.2-02-3M3

Manufacturer: Schaffner EMC, Inc.

Description: CMC 3.3MH 1.2A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: EH20-1.2-02-3M3 PDF

Availability: 548 pieces

Unit Price: ~~$2.08000~~

Current price of EH20-1.2-02-3M3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EH20-1.2-02-3M3 Specifications

Type	Description
Series:	EH
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3.3 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.2A
DC Resistance (DCR) (Max):	127mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max):	0.740" (18.80mm)
Package / Case:	Horizontal, 4 PC Pin
