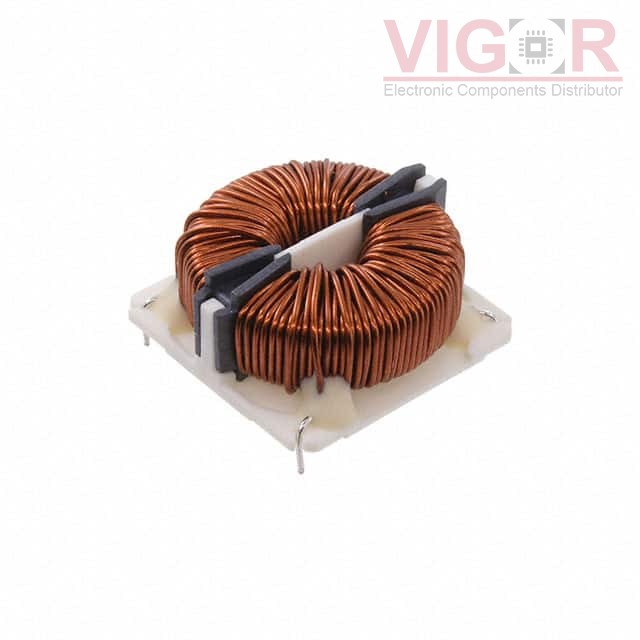

SC-10-20JH

Image is for reference,
please contact us to get the real picture

Part No :: SC-10-20JH

Manufacturer: KEMET

Description: COMMON MODE CHOKE 2MH 10A 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Jul 29 - Aug 02 2025

DataSheet: SC-10-20JH PDF

Availability: 100 pieces

Unit Price: ~~$10.27000~~

Current price of SC-10-20JH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SC-10-20JH Specifications

Type	Description
Series:	SC
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	10A
DC Resistance (DCR) (Max):	22mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.654" Dia (42.00mm)
Height (Max):	1.614" (41.00mm)
Package / Case:	Horizontal, 4 PC Pin
