EV28-3.0-02-9M0-X

EV28-3.0-02-9M0-X

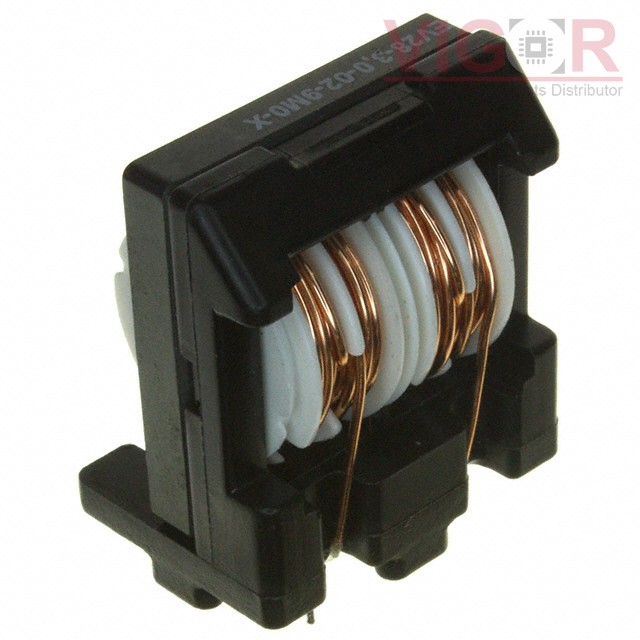

Image is for reference,
please contact us to get the real picture

Part No :

EV28-3.0-02-9M0-X

Manufacturer
Schaffner EMC, Inc.
Description
COMMON MODE CHOKE 9MH 3A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
EV28-3.0-02-9M0-X PDF
Availability
551 pieces
Unit Price
$3.32000

Current price of EV28-3.0-02-9M0-X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EV28-3.0-02-9M0-X Specifications
Type Description
Series:EV
Package:Bulk
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:9 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):3A
DC Resistance (DCR) (Max):115mOhm
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-25°C ~ 100°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.150" L x 0.827" W (29.20mm x 21.00mm)
Height (Max):1.406" (35.70mm)
Package / Case:Vertical, 4 PC Pin
