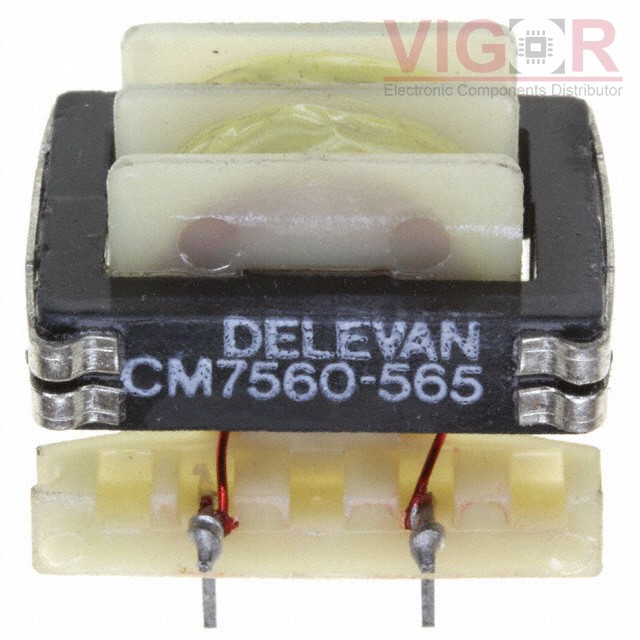

CM7560-565

CM7560-565

Image is for reference,
please contact us to get the real picture

Part No :

CM7560-565

Manufacturer
API Delevan
Description
CMC 5.6MH 880MA 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
CM7560-565 PDF
Availability
0 pieces
Unit Price
$14.37976

Current price of CM7560-565 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CM7560-565 Specifications
Type Description
Series:CM7560
Package:Bulk
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:5.6 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):880mA
DC Resistance (DCR) (Max):500mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.071" L x 0.858" W (27.20mm x 21.80mm)
Height (Max):0.861" (21.86mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT B82791H2501N001

B82791H2501N001

CMC 10MH 500MA 2LN TH

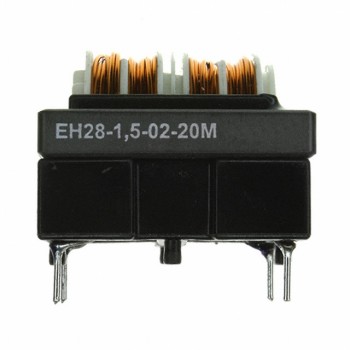

HOT EH28-1.5-02-20M

EH28-1.5-02-20M

CMC 20MH 1.5A 2LN TH

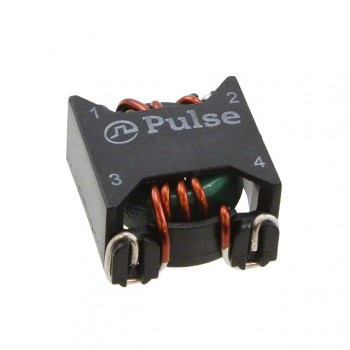

HOT PA2753NL
