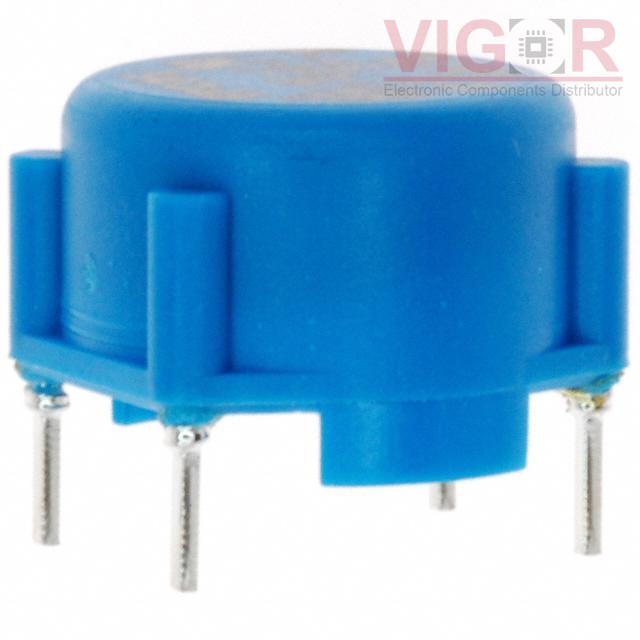

B82721A2202N001

B82721A2202N001

Image is for reference,
please contact us to get the real picture

Part No :

B82721A2202N001

Manufacturer
TDK EPCOS
Description
COMMON MODE CHOKE 1MH 2A 2LN TH
Catalog
Common Mode Chokes
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
B82721A2202N001 PDF
Availability
0 pieces
Unit Price
$2.72000

Current price of B82721A2202N001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82721A2202N001 Specifications
Type Description
Series:B82721
Package:Tray
Part Status:Active
Filter Type:Power Line
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:1 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):2A
DC Resistance (DCR) (Max):80mOhm (Typ)
Voltage Rating - DC:-
Voltage Rating - AC:250V
Operating Temperature:-40°C ~ 125°C
Ratings:-
Approval Agency:ENEC, UR, VDE
Features:-
Mounting Type:Through Hole
Size / Dimension:0.705" L x 0.681" W (17.90mm x 17.30mm)
Height (Max):0.496" (12.60mm)
Package / Case:Horizontal, 4 PC Pin
