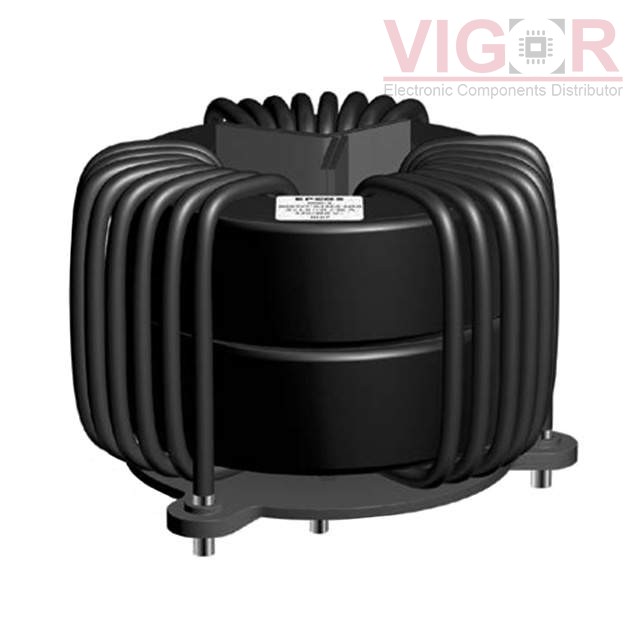

B82747S4423N020

Image is for reference,
please contact us to get the real picture

Part No :: B82747S4423N020

Manufacturer: TDK EPCOS

Description: CMC 1.5MH 42A 3LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 07 - Aug 11 2025

DataSheet: B82747S4423N020 PDF

Availability: 24 pieces

Unit Price: ~~$23.01000~~

Current price of B82747S4423N020 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B82747S4423N020 Specifications

Type	Description
Series:	B82747
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	3
Impedance @ Frequency:	-
Inductance @ Frequency:	1.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	42A
DC Resistance (DCR) (Max):	2.6mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	440/250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.677" Dia (68.00mm)
Height (Max):	1.299" (33.00mm)
Package / Case:	Radial - 6 Leads
