744821120

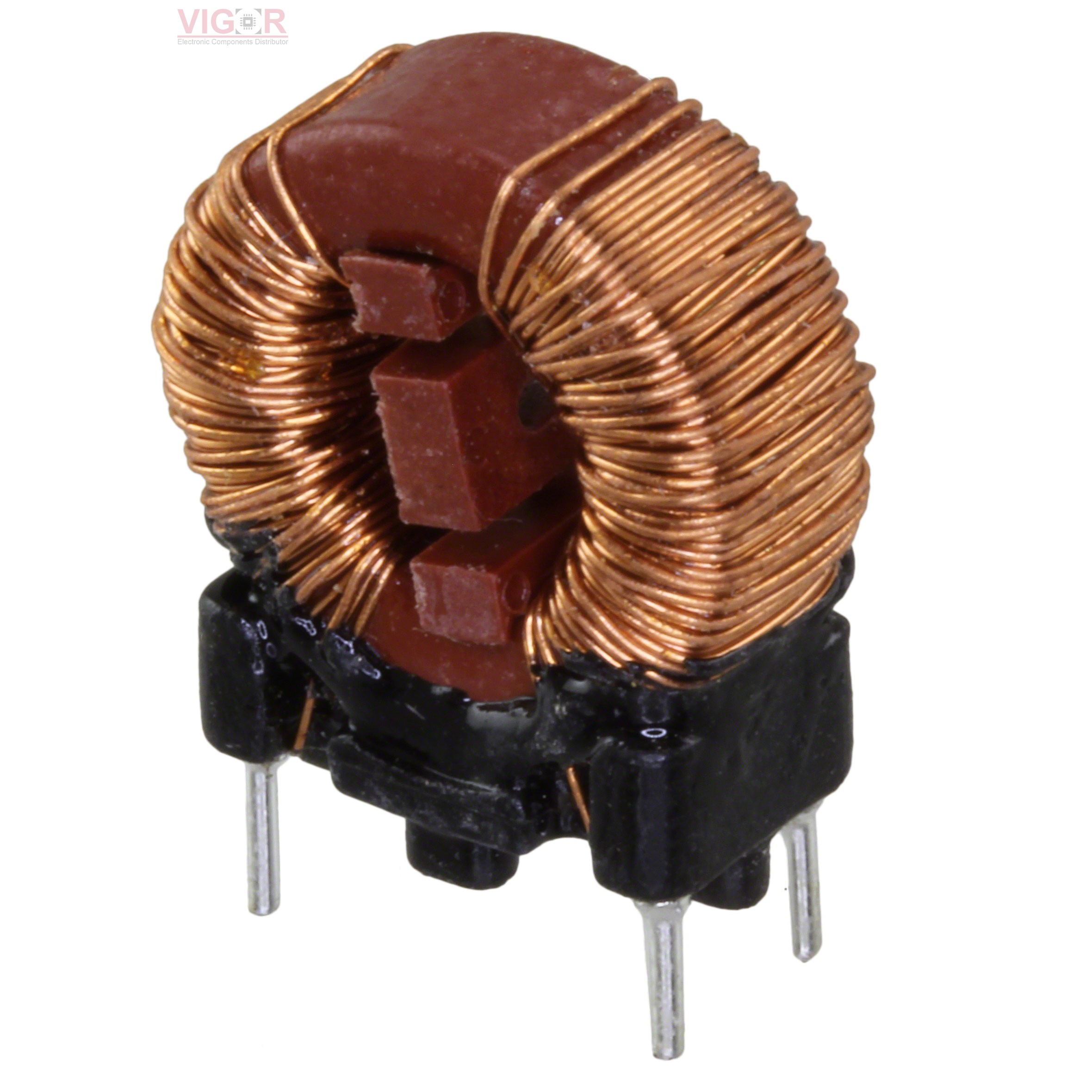

Image is for reference,
please contact us to get the real picture

Part No :: 744821120

Manufacturer: Würth Elektronik Midcom

Description: CMC 20MH 500MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Aug 04 - Aug 08 2025

DataSheet: 744821120 PDF

Availability: 5365 pieces

Unit Price: ~~$3.63000~~

Current price of 744821120 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

744821120 Specifications

Type	Description
Series:	WE-CMB
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	20 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	1Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.591" L x 0.295" W (15.00mm x 7.50mm)
Height (Max):	0.689" (17.50mm)
Package / Case:	Vertical, 4 PC Pin
